Socket: LGA1151
Graphics: Integrated Graphics Processor- Intel® UHD Graphics support; Multi-VGA output support : HDMI/DisplayPort ports; - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz; - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz; Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™; DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
CPU's supported: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 3.0
Chipset: Intel® Z390
Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4); 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1; 4 x PCIe 3.0/2.0 x1 *1; *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage: Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3; 6 x SATA 6Gb/s port(s), gray, *3; Support Raid 0, 1, 5, 10; Intel® Rapid Storage Technology supports; Intel® Optane™ Memory Ready; Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1); PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card*4
Memory type: 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

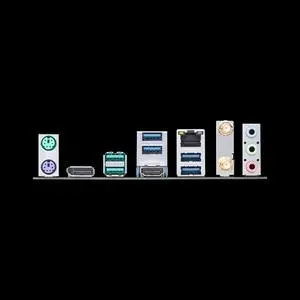

I/O: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DisplayPort; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 2 Type-A,; 4 x USB 3.1 Gen 1 Type-A,; 2 x Wi-Fi antenna port(s); 3 x 8-channel Audio I/O
Connectors: 2 x Aura RGB Strip Header(s); 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s); 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s); 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (4 -pin); 1 x CPU OPT Fan connector(s) (4 -pin); 2 x Chassis Fan connector(s) (4 -pin); 1 x AIO_PUMP connector (); 1 x S/PDIF out header(s); 1 x 8-pin EATX 12 V Power connector; 1 x 24-pin EATX Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x MemOK! II switch(es); 1 x Clear CMOS jumper(s); 1 x System panel connector
Audio: Realtek® ALC S1200A 8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Front Panel Jack-retasking; Audio Feature : - Exclusive DTS Custom for GAMING Headsets.; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN: Intel® I219V, featuring Turbo LAN; TUF LANGuard; Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor: ATX
OS: Windows® 10 64-bit
Other: Intel® Wireless-AC 9560; Wi-Fi 802.11 a/b/g/n/ac; Supports dual band frequency 2.4/5 GHz; Supports MU-MIMO; Supports channel bandwidth: HT20/HT40/HT80/HT160; Bluetooth® 5.0
Warranty: 36 Months
